耐扭式彎角（分體）尼龍電纜固定頭
產品類別：防水接頭系列
產品簡介：0109
服務熱線：13712385250
產品詳情
Thread：Metric，PG，G(PF/BSP/PS)，and NPT thread.

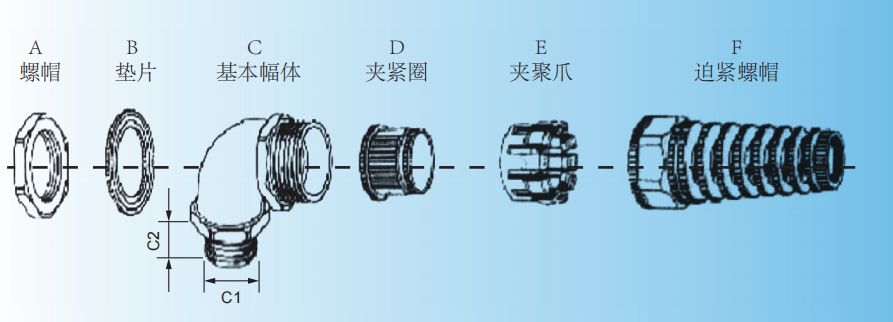

產品材質：A.C.F 部分采用 UL 認可之無鹵素（Halogen -Free）尼龍 PA696（防火等級 UL94V-2）制成；（可定制 UL 認可 V-0 防火等 級
尼龍原料）B.D 部分采用三元丙（EPDM）耐候橡膠制成。（可定制耐寒、耐高溫橡膠：耐高酸堿、耐虎穴與抗腐蝕橡膠）。
Materials：UL approved Nylon PA66PA 66(FlammabilityUL94V-2)forA.C.F parts,Weather-resistabt EPDM rubber
for B.D parts,(Accept to make super rubber: resist high temperature rubber,resist strong acid/alkali,etc).
保護等級：IP67
Pratection degree:IP67
工作溫度：靜態-40℃至 100℃，或瞬間可耐熱至 120℃；動態-20℃-80℃，或瞬間可耐熱至 100℃
Working temperature:Static-40℃ to 100℃
產品特性：本款高性能防水尼龍浪管盒接頭能的抗水壓，是一款即使拉扯波紋管也能完全保持氣密的產品。產品廣泛地應用于移動式自動化
設備 之防水、防油與氣密的場合
Feature:The Prwerful Watertight Fittings build the best tighening power by a very high abd active compreassion force to resist
the ingress of high pressure water jet from any angle which can provide 100% dynamic waterproof and airtight performance over
thewidest range of corrugated tubings.the product can widely applied to resist water impact or immersinon as a tough cable
protection system for any machines,devices and equipments with the very specific demands.
螺牙規格：公制牙（Metric）、PG 牙、G(PF/BSP/PS)牙、NPT 牙。
Thread：Metric，PG，G(PF/BSP/PS)，and NPT thread.
產品材質：A C F 部分采用 UL 認可之尼龍 PA66（防火等級 UL94V-2）制成，（可定制 UL 認可的 V-0 防火等級尼龍原料）；B.D 部分采用
三元乙丙耐候橡膠制成。(可定制耐寒、耐高溫橡膠，耐高酸堿、耐化學與抗腐蝕橡膠）。
Materials：UL approved Nylon PA66 (Flammability UL 94V-2)for A C F pads,(Accept to make flammability UL94V-0);EPDM rubber
for B.D parts,(Also accept to make super rubber resist high temperature rubber,resist strong acid/alkali,etc).
保護等級：IP67-10
Pratection degree:IP67-10
工作溫度：靜態-40℃至 100℃，或瞬間可耐熱至 120℃；動態-20℃-80℃，或瞬間可耐熱至 100℃ Working temperature:Static-40℃ to
100℃,or instantaneous can heat at 120℃;Dynamic-20℃-80℃,or instantaneous can heat at 100℃
產品特性：特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
Feature:The claws and seas of excellent design,sealing nut have a "click"sound and re-open ,can hold cable firmly and have a wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.
顏色種類：黑色、灰色，其它顏色可定做。
Color:Black,gray,other color available upon request.
螺牙規格Thread
編號Item No.
電纜范圍Cable Range ①
螺紋外徑Theead0.D.A1
螺紋長度TheeadLengthA2
扳手徑SpannerSizeA&F
包裝Std.Pkg(pcs)
M16×1.5
SECG-M16A-7-ST
4-7
16
10
22/22
10
SECG-M16A-10-ST
6-10
16
10
22/22
10
M20×1.5
SECG-M20A-11
6-11
20
15
27/27
10
SECG-M20A─14
9-14
20
15
27/27
10
M25×1.5
SECG-M2─16
12-16
25
15
33/33
10
SECG-M2─18
14-18
25
15
33/33
10
