1外迫式電纜固定頭（連體）
產品類別：防水接頭系列
產品簡介：0101
服務熱線：13712385250
產品詳情
|
螺牙規格Thread |
編號Item No. |
電纜范圍Cable Range D |
螺紋外徑Theead 0.D.A1 |
螺紋長度Theead LengthA2 |
扳手徑Spanner SizeA&F |
包裝Std.Pkg(pcs) |
|
PG7 |
NCG-PG7S -6 |
2-6 |
12.5 |
8 |
17/15 |
50 |
|
NCG-PG7-7 |
3-7 |
12.5 |
8 |
17/19 |
50 |
|
|
PG9 |
NCG-PG9-8 |
3-8 |
15.2 |
8.2 |
22/19 |
50 |
|
PG11 |
NCG-PG11-10 |
4-10 |
18.6 |
10 |
24/22 |
50 |
|
PG13.5 |
NCG-PG13.5 -9 |
3-9 |
20.4 |
10 |
27/24 |
50 |
|
NCG-PG13.5-12.5 |
5-12.5 |
20.4 |
10 |
27/24 |
50 |
|
|
PG16 |
NCG-PG16 -11 |
5-1l |
22.5 |
10.8 |
30/27 |
50 |
|
NCG-PG16 -14 |
6-14 |
22.5 |
10.8 |
30/27 |
50 |
|
|
PG19 |
NCG-PG19 -11 |
5-11 |
23.5 |
11 |
30/27 |
50 |
|
NCG-PG19 -14 |
6-14 |
23.5 |
11 |
30/27 |
50 |
|
|
PG21 |
NCG-PG21 -15.5 |
8-15.5 |
28.3 |
12 |
36/33 |
50 |
|
NCG-PG21 -17.5 |
10-17.5 |
28.3 |
12 |
36/33 |
50 |
|
|
PG25 |
NCG-PG25-20 |
10-20 |
30 |
13 |
36/37 |
50 |
|
PG29 |
NCG-PG29 -21 |
14-21 |
37 |
12 |
46/41 |
50 |
|
NCG-PG29 -24 |
16─24 |
37 |
12 |
46/41 |
50 |
|
|
PG36 |
NCG-PG36 -25.5 |
15-25.5 |
47 |
14 |
57/52 |
50 |
|
NCG-PG36 -31 |
18─31 |
47 |
14 |
57/52 |
50 |
|
|
PG42 |
NCG-PG42 -32 |
21─32 |
54 |
15 |
64/62 |
50 |
|
NCG-PG42 -41 |
26─41 |
54 |
15 |
64/62 |
50 |
|
|
PG48 |
NCG-PG48 -38 |
25─38 |
59.3 |
15.5 |
70/65 |
50 |
|
NCG-PG48 -45.5 |
30-45.5 |
59.3 |
15.5 |
70/65 |
50 |
螺牙規格：公制牙（Metric）、PG牙、G(PF/BSP/PS)牙、NPT牙。
Thread：Metric，PG，G(PF/BSP/PS)，and NPT thread.

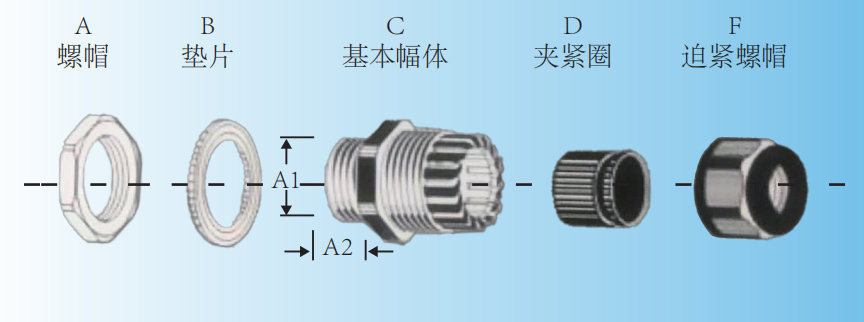

產品材質：A C E F部分采用UL認可之尼龍PA66（防火等級UL94V-2）制成，（可定制UL認可的V-0防火等級尼龍原料）；B.D部分采用
三元乙丙耐候橡膠制成。(可定制耐寒、耐高溫橡膠，耐高酸堿、耐化學與抗腐蝕橡膠）。
Materials：UL approved Nylon PA66 (Flammability UL 94V-2)for A C E F pads,(Accept to make flammability UL94V-0);EPDM
rubber for B.D parts,(Also accept to make super rubber resist high temperature rubber,resist strong acid/alkali,etc).
保護等級：IP67-10
Pratection degree:IP67-10
工作溫度：靜態-40℃至100℃，或瞬間可耐熱至120℃；動態-20℃-80℃，或瞬間可耐熱至100℃
Working temperature:Static-40℃ to 100℃,or instantaneous can heat at 120℃;Dynamic-20℃-80℃,or instantaneous can heat at
100℃
產品特性：特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
Feature:The claws and seas of excellent design,sealing nut have a "click"sound and re-open ,can hold cable firmly and have a
wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.
顏色種類：黑色、灰色，其它顏色可定做。
Color:Black,gray,other color available upon request.
|
螺牙規格Thread |
編號Item No. |
電纜范圍Cable Range ① |
螺紋外徑Theead 0.D.Al |
螺紋長度Theead LengthA2 |
扳手徑Spanner SizeA&F |
包裝Std.Pkg(pcs) |
|
M8×1.25 |
NCG-M8 -4.8
|
2 -4.8 |
8 |
7.5 |
12/13 |
50 |
|
M10×1.5 |
NCG-M10-6 |
3-6 |
10 |
8 |
15/13 |
50 |
|
M12×1.5 |
NCG-M12S-6 |
2-6 |
12 |
8.5 |
18/15 |
50 |
|
NCG-M12SL -6 |
2-6 |
12 |
15 |
18/15 |
50 |
|
|
NCG-M12L -5
|
2-5 |
12 |
8.5 |
18/19 |
50 |
|
|
NCG-M12L -7
|
3-7 |
12 |
8.5 |
18/19 |
50 |
|
|
NCG-M12L-5 |
2-5 |
12 |
15 |
18/19 |
50 |
|
|
NCG-M12L-7 |
3-7 |
12 |
15 |
18/19 |
50 |
|
|
M16×1.5 |
NCG-M16S-8 |
3-8 |
16 |
10 |
22/19 |
50 |
|
NCG-M16SL-8 |
3-8 |
16 |
15 |
22/19 |
50 |
|
|
NCG-M16 -7
|
3-7 |
16 |
10 |
22/19 |
50 |
|
|
NCG-M16 -10
|
4-10 |
16 |
10 |
22/22 |
50 |
|
|
NCG-M16L-7 |
3-7 |
16 |
15 |
22/22 |
50 |
|
|
NCG-M16L-10 |
4-10 |
16 |
15 |
22/22 |
50 |
|
|
M18×1.5 |
NCG-M18 -10
|
4-10 |
18 |
10 |
24/22 |
50 |
|
NCG-M18L-10 |
4-10 |
18 |
15 |
24/22 |
50 |
|
|
M20×1.5 |
NCG-M20S -12.5
|
4 -12.5 |
20 |
10 |
27/24 |
50 |
|
NCG-M20 -11
|
3-11 |
20 |
11 |
27/27 |
50 |
|
|
NCG-M20 -13.5
|
5 -13.5 |
20 |
11 |
27/27 |
50 |
|
|
NCG-M20L -11
|
3-11 |
20 |
15 |
27/27 |
50 |
|
|
NCG-M20L-13.5 |
5-13.5 |
20 |
15 |
27/27 |
50 |
|
|
M25×1.5 |
NCG-M25S-14 |
6-14 |
25 |
11.6 |
33/33 |
50 |
|
NCG-M25 -16
|
8-16 |
25 |
11.6 |
33/33 |
50 |
|
|
NCG-M25-18 |
10-18 |
25 |
11.6 |
33/33 |
50 |
|
|
NCG-M25L-16 |
8-16 |
25 |
15 |
33/33 |
50 |
|
|
NCG-M25L─18 |
10─18 |
25 |
15 |
33/33 |
50 |
|
|
M32×1.5 |
NCG-M25 -16
|
10-17.5 |
32 |
15 |
36/42 |
20 |
|
NCG-M32─22 |
14─22 |
32 |
15 |
41/42 |
20 |
|
|
NCG-M32 -25
|
16─25 |
32 |
15 |
41/42 |
20 |
|
|
M36×1.5 |
NCG-M36 -22
|
14─22 |
36 |
12 |
45/42 |
20 |
|
NCG-M36 -25
|
16─25 |
36 |
12 |
45/42 |
20 |
|
|
M40×1.5 |
NCG-M40 -26.5
|
17-26.5 |
40 |
15 |
50/52 |
10 |
|
NCG-M40─31 |
20─31 |
40 |
15 |
50/52 |
10 |
|
|
M50×1.5 |
NCG-M50 -32
|
25─32 |
50 |
15 |
62/62 |
10 |
|
NCG-M50 -41
|
30─41 |
50 |
15 |
62/62 |
10 |
|
|
M63×1.5 |
NCG-M63 -46
|
33 -46 |
63 |
18 |
75/65 |
10 |
|
M75×1.5 |
NCG-M75─56 |
50─56 |
75 |
25 |
92/92 |
1 |
|
M90×1.5 |
NCG-M90 -66
|
56─66 |
90 |
25 |
92/92 |
1 |
