多孔及扁孔型電纜固定頭
產品類別：防水接頭系列
產品簡介：固定,電纜,孔型,多孔
服務熱線：13712385250
產品詳情
|
螺牙規格Thread |
編號Cat.No. |
通用電纜CableRange |
螺紋外徑Theead0.D.Ci |
機板口徑PanelMounting |
螺紋長度TheeadLengthC2 |
扳手徑SpannerSizeA&F |
包裝Std.Pkg(pcs) |
|
|
黑色(Black)) |
灰色(Gray) |
|||||||
|
M12×1.5 |
MG12A-H2-03B |
MG12A-H2-03G |
3-1.2 |
12 |
12-12.3 |
9 |
18/19 |
50 |
|
M16×1.5 |
MG16A-H2-04B |
MG16A-H2-04G |
14-1.6 |
16 |
16-16.3 |
15 |
22/22 |
50 |
|
M20×1.5 |
MG20A-H2-03B |
MG20A-H2-03G |
13.5-2 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M20×1.5 |
MG20A-H2-06B |
MG20A-H2-06G |
6-2.5 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M25×1.5 |
MG2-H2-05B |
MG2-H2-05G |
5-2 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
M25×1.5 |
MG2-H2-08B |
MG2-H2-08G |
8.7-4.5 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
M32×1.5 |
MG32A-H2-10B |
MG32A-H2-10G |
10-5 |
32 |
32-32.4 |
15 |
41/41 |
10 |
|
M12×1.5 |
MG12A-H3-02B |
MG12A-H3-02G |
2.6-1.2 |
12 |
12-12.3 |
9 |
18/19 |
50 |
|
M16×1.5 |
MG16A-H3-04B |
MG16A-H3-04G |
4-1.6 |
16 |
16-16.3 |
15 |
22/22 |
50 |
|
M20×1.5 |
MG20A-H3-03B |
MG20A-H3-03G |
3.5-1.5 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M20×1.5 |
MG20A-H3-05B |
MG20A-H3-05G |
5─2 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M25×1.5 |
MG2-H3-05B |
MG2-H3-05G |
5─2 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
M25×1.5 |
MG2-H3-08B |
MG2-H3-08G |
8-4 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
M32×1.5 |
MG32A-H3-10B |
MG32A-H3-10G |
10-5 |
32 |
32-32.4 |
15 |
41/41 |
10 |
|
M12×1.5 |
MG12A-H4-02B |
MG12A-H4-02G |
2.3-1 |
12 |
12-12.3 |
9 |
18/19 |
50 |
|
M16×1.5 |
MG16A-H4-03B |
MG16A-H4-03G |
3-1.2 |
16 |
16-16.3 |
15 |
22/22 |
50 |
|
M20×1.5 |
MG20A-H4-03B |
MG20A-H4-03G |
3.5-1.5 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M20×1.5 |
MG20A-H4-04B |
MG20A-H4-04G |
4.5-2 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M25×1.5 |
MG2-H4-05B |
MG2-H4-05G |
5─2 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
M25×1.5 |
MG2-H4-07B |
MG2-H4-07G |
7-3.5 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
M32×1.5 |
MG32A-H4-09B |
MG32A-H4-09G |
9-4.5 |
32 |
32-32.4 |
15 |
41/41 |
10 |
螺牙規格：公制牙（Metric）
Thread：Metric，PG，G(PF)，and NPT thread.

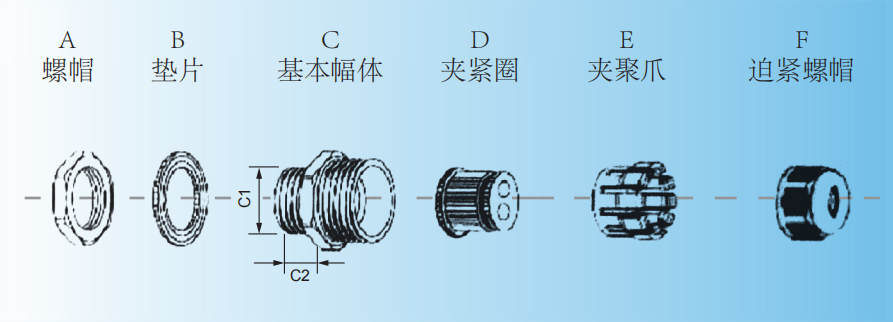

產品材質：A C E F 部分采用UL 認可之尼龍PA66（防火等級UL94V-2）制成。,B 或D 部分采用EPDM 耐候橡膠制成。
Materials：UL approved Nylon PA66 (Flammability UL 94V-2)for A C E F pads.EPDM rubber for B.D parts
保護等級：IP67.
Pratection degree:IP67.
顏色種類：黑色、灰色。
Color:Black（RAL9005）、gray（RAL7035）。
工作溫度：-40℃至100℃。
Working temperature:Static-40℃ to 100℃
產品特性：特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
Feature:The claws and seals of excellent design,sealing nut have a "click"sound and re-open ,can hold cable firmly and have a
Wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency
多樣出孔：有2-8 孔電源、電纜志用之出線設計，使每一個別之電纜得到之防水絕緣效果，且不致相互糾纏。
Seals :For cable outlet holes (several holes and flat,all the cables car not easily entangled and waterproof respectively
|
夾緊圈形狀SealHoles |
螺牙規格Thread |
編號Cat.No. |
通用電纜CableRangeφ |
螺紋外徑Theead0.D.Ci |
機板口徑PanelMounting |
螺紋長度TheeadLengthC2 |
扳手徑SpannerSizeA&F |
包裝Std.Pkg(pcs) |
|
|
黑色(Black)) |
灰色(Gray) |
||||||||
|
|
M16×1.5 |
MG16-H5-02B |
MG16-H5-02G |
2.5-1 |
16 |
16-16.3 |
15 |
22/22 |
50 |
|
M20×1.5 |
MG20-H5-03B |
MG20-H5-03G |
3-1.2 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
|
M20×1.5 |
MG20-H5-04B |
MG20-H5-04G |
4.2-1.7 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
|
M25×1.5 |
MG25-H5-03B |
MG25-H5-03G |
3.5-1.5 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
|
M25×1.5 |
MG25-H5-06B |
MG25-H5-06G |
6-3 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
|
M32×1.5 |
MG32-H5-08B |
MG32-H5-08G |
8-4 |
32 |
32-32.4 |
15 |
41/41 |
10 |
|
|
|
M16×1.5 |
MG16-H6-02B |
MG16-H6-02G |
2-1 |
16 |
16-16.3 |
15 |
22/22 |
50 |
|
M20×1.5 |
MG20-H6-03B |
MG20-H6-03G |
3-1.2 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
|
M25×1.5 |
MG25-H6-03B |
MG25-H6-03G |
3.5-1.5 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
|
M25×1.5 |
MG25-H6-05B |
MG25-H6-05G |
5.3-2.4 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
|
M32×1.5 |
MG32-H6-07B |
MG32-H6-07G |
7-3.5 |
32 |
32-32.4 |
15 |
41/41 |
10 |
|
|
|
M20×1.5 |
MG20-H7-03B |
MG20-H7-03G |
3-1.2 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M25×1.5 |
MG25-H7-03B |
MG25-H7-03G |
3.5-1.5 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
|
M32×1.5 |
MG32-H7-09B |
MG32-H7-09G |
9-4.5 |
32 |
32-32.4 |
15 |
41/41 |
10 |
|
|
|
M20×1.5 |
MG20-H8-02B |
MG20-H8-02B |
2.8-1 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
M25×1.5 |
MG25-H8-03B |
MG25-H8-03G |
3.5-1.5 |
25 |
25-25.4 |
15 |
33/33 |
50 |
|
|
|
M16×1.5 |
MG16-0610B |
MG16-0610G |
6×10 |
16 |
16-16.3 |
15 |
22/22 |
50 |
|
M20×1.5 |
MG20-0612B |
MG20-0612G |
6.5×12 |
20 |
20-20.3 |
15 |
27/27 |
50 |
|
|
M20×1.5 |
MG20-0614B |
MG20-0614G |
6×4 |
20 |
20-20.3 |
15 |
33/33 |
50 |
|
|
M20×1.5 |
MG20-0712B |
MG20-0712G |
7×12 |
20 |
20-20.3 |
15 |
33/33 |
50 |
|
|
M20×1.5 |
MG20-0714B |
MG20-0714G |
7×14 |
20 |
20-20.3 |
15 |
41/41 |
50 |
|
|
M25×1.5 |
MG25-0614B |
MG25-0614G |
6×14 |
25 |
25-25.4 |
15 |
41/41 |
50 |
|
|
M25×1.5 |
MG25-0714B |
MG25-0714G |
7×14 |
25 |
25-25.4 |
15 |
41/41 |
50 |
|
|
M32×1.5 |
MG32-0822B |
MG32-0822G |
8×22 |
32 |
32-32.4 |
15 |
41/41 |
10 |
|
|
M40×1.5 |
MG40-1028B |
MG40-1028G |
10×28.5 |
40 |
40-40.3 |
20 |
50/50 |
10 |
|
|
M40×1.5 |
MG40-0529B |
MG40-0529G |
5.5×29 |
40 |
40-40.3 |
20 |
50/50 |
10 |
|
